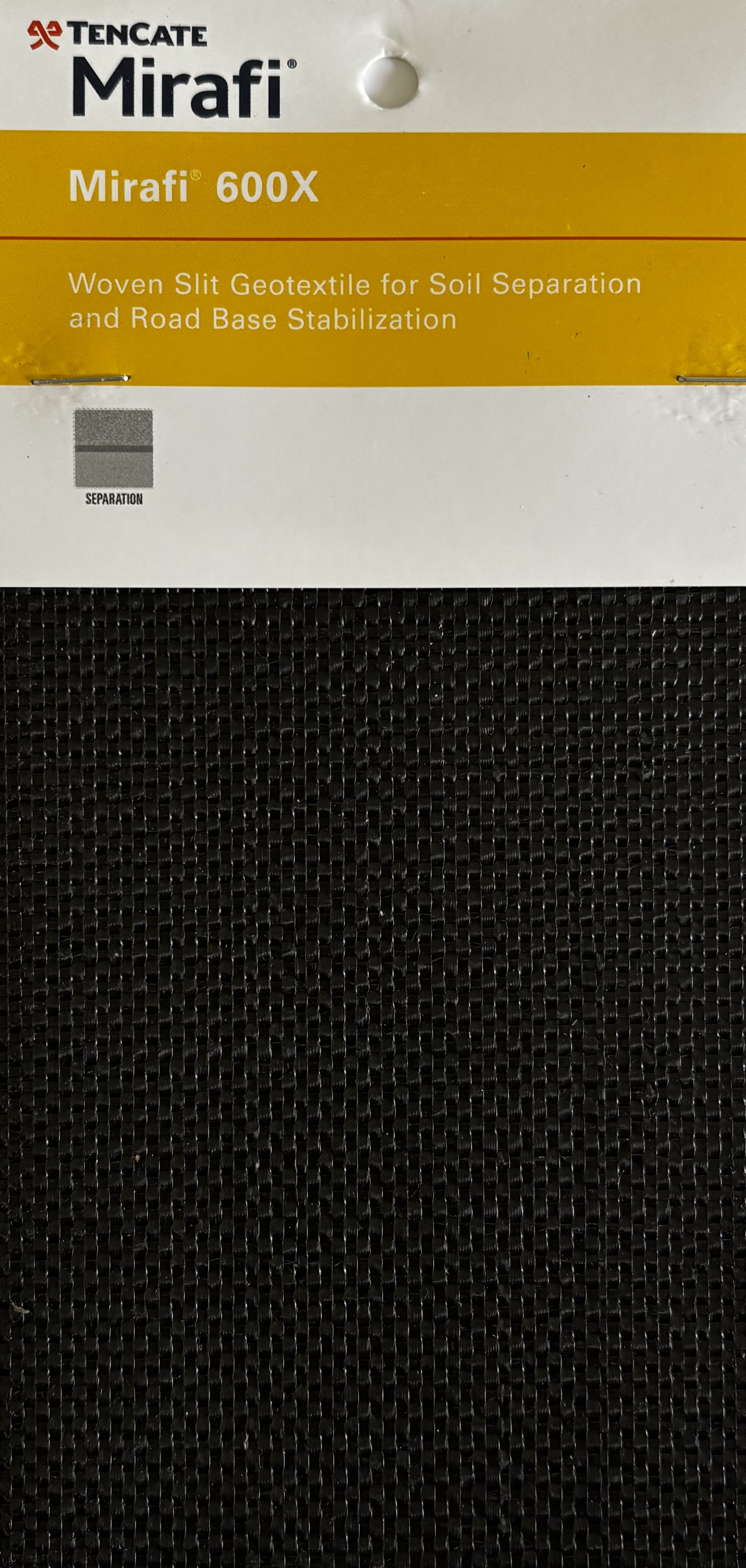

Mirafi® 600X Woven Geotextile
Heavy-duty woven geotextile for demanding applications. Provides maximum tensile strength and exceptional puncture resistance.
Product Overview
Key Features
- ✓Heavy-duty woven polypropylene
- ✓Maximum tensile strength
- ✓Exceptional puncture resistance
- ✓Long-term durability
Applications
- •Heavy traffic roads
- •Industrial site preparation
- •Landfill construction
- •Heavy equipment access roads
What Is the Mirafi 600X?
The Mirafi 600X is a heavy-duty woven geotextile composed of polypropylene fibers woven into a stable network where the fibers retain their relative position. This is the high-strength option in the Mirafi woven separation fabric line.
The 600X is inert to biological degradation and resists naturally encountered chemicals, alkalis, and acids. It is manufactured by TenCate Geosynthetics Americas (a Solmax company) and tested in a GAI-LAP accredited laboratory.
Mechanical Properties
The 600X provides grab tensile strength of 315 lbs in both the machine and cross-machine directions with 15% elongation—significantly stronger than the 500X. Trapezoid tear strength measures 120 lbs and CBR puncture strength reaches 900 lbs.
The apparent opening size (AOS) is #40 U.S. sieve (0.425mm), matching the 500X filtration characteristics. Permittivity of 0.05 sec⁻¹ and flow rate of 4 gal/min/ft² allow water passage while preventing soil migration.
Durability
The 600X retains 70% of its strength after 500 hours of UV exposure testing. Once covered with soil or aggregate, the fabric is protected from UV light and will maintain its properties for the life of the installation.
The polypropylene construction resists biological degradation and is unaffected by chemicals, alkalis, and acids commonly found in soil environments.
Roll Sizes and Coverage
The 600X comes in rolls measuring 12.5 feet wide by 360 feet long, covering approximately 500 square yards per roll. Each roll weighs approximately 208 lbs. The heavier weight reflects the increased material strength.
Contact us for current availability and delivery lead times. We can coordinate shipments throughout Northern Ohio.
When to Choose 600X
Choose the 600X for demanding applications where maximum strength is required. Common uses include heavy traffic roads, industrial site preparation, landfill construction, and heavy equipment access roads where the standard 500X may not provide adequate performance.
For typical road separation and parking lot applications, the 500X provides adequate performance at lower cost. Contact us to discuss your project requirements and we can recommend the most appropriate product.
Mirafi 600X FAQ
What is the Mirafi 600X woven geotextile?
The Mirafi 600X is a heavy-duty woven geotextile composed of polypropylene fibers woven into a stable network where the fibers retain their relative position. It is the high-strength option in the Mirafi woven separation fabric line, manufactured by TenCate Geosynthetics Americas (a Solmax company) and tested in a GAI-LAP accredited laboratory.
How does the 600X compare to the 500X?
The 600X is significantly stronger than the 500X, with 315 lbs grab tensile strength (vs 200 lbs for 500X), 120 lbs trapezoid tear strength (vs 75 lbs), and 900 lbs CBR puncture strength (vs 700 lbs). Both share the same AOS of #40 U.S. sieve (0.425mm) and flow rate of 4 gal/min/ft². The 600X is designed for demanding applications where the 500X may not provide adequate performance.
What heavy-duty applications is the 600X used for?
The 600X is used for heavy traffic roads, industrial site preparation, landfill construction, and heavy equipment access roads. It is ideal for demanding applications where maximum strength is required and where heavy equipment traffic or poor soil conditions are present.
What are the Mirafi 600X specifications?
The 600X provides 315 lbs grab tensile strength in both directions with 15% elongation, 120 lbs trapezoid tear strength, and 900 lbs CBR puncture strength. The AOS is #40 U.S. sieve (0.425mm) with permittivity of 0.05 sec⁻¹ and flow rate of 4 gal/min/ft². Rolls measure 12.5 feet wide by 360 feet long, covering approximately 500 square yards at 208 lbs per roll.
Does the Mirafi 600X meet DOT compliance requirements?
The 600X is manufactured by TenCate Geosynthetics Americas (a Solmax company) and tested in a GAI-LAP accredited laboratory. It is inert to biological degradation and resists naturally encountered chemicals, alkalis, and acids. Contact us to verify compliance with your specific state or project DOT requirements.
